Score matching and diffusion

April 22, 2026

generative models theory

The setup goes back to Sohl-Dickstein et al. [1]. The forward chain takes data $x_0$ and adds Gaussian noise according to a fixed schedule $\bar\alpha_t$ , producing intermediate samples $x_1, \ldots, x_T$ via $x_t = \sqrt{\bar\alpha_t}\, x_0 + \sqrt{1-\bar\alpha_t}\,\epsilon$ with $\epsilon \sim \mathcal{N}(0, I)$ . The schedule is chosen so that $x_T$ is essentially a standard Gaussian. The reverse chain undoes the corruption: sampling from the data distribution reduces to learning the conditional $p(x_{t-1} \mid x_t)$ at each step.

Score matching

The DDPM forward chain has a clean dual under score matching, and once the two are placed side by side they are not separate ideas. The score function $s(x,t) = \nabla_x \log p_t(x)$ is the gradient of the log-density of the noisy distribution at noise level $t$ evaluated at $x$ ; it points in the direction along which the log-density rises most steeply. Hyvärinen's original score-matching objective is the square norm of the score plus the trace of the Hessian of the log-density. The Hessian-trace term is expensive in high dimensions. Vincent's denoising score matching gets around this: with Gaussian noise of variance $\sigma^2$ , the optimal MMSE denoiser $D^*(\widetilde{x}) = \mathbb{E}[x \mid \widetilde{x}]$ satisfies $\nabla_{\widetilde{x}} \log p_\sigma(\widetilde{x}) = \frac{D^*(\widetilde{x}) - \widetilde{x}}{\sigma^2},$ so predicting the noise (equivalently, predicting the clean image) is the same problem as estimating the score of the noisy distribution, with mean-squared error as the loss.

Song and Ermon [2] estimated these scores at a sweep of noise levels and used annealed Langevin dynamics to draw samples from the estimates. Ho, Jain, and Abbeel showed that DDPMs trained with a weighted variational bound reduce, in a particular weighting limit, to denoising score matching at multiple noise levels. The point shared by both: learning to predict the noise that was added at a given level is enough to recover the score of the noisy distribution at that level, and sampling is then iterated denoising along the noise schedule.

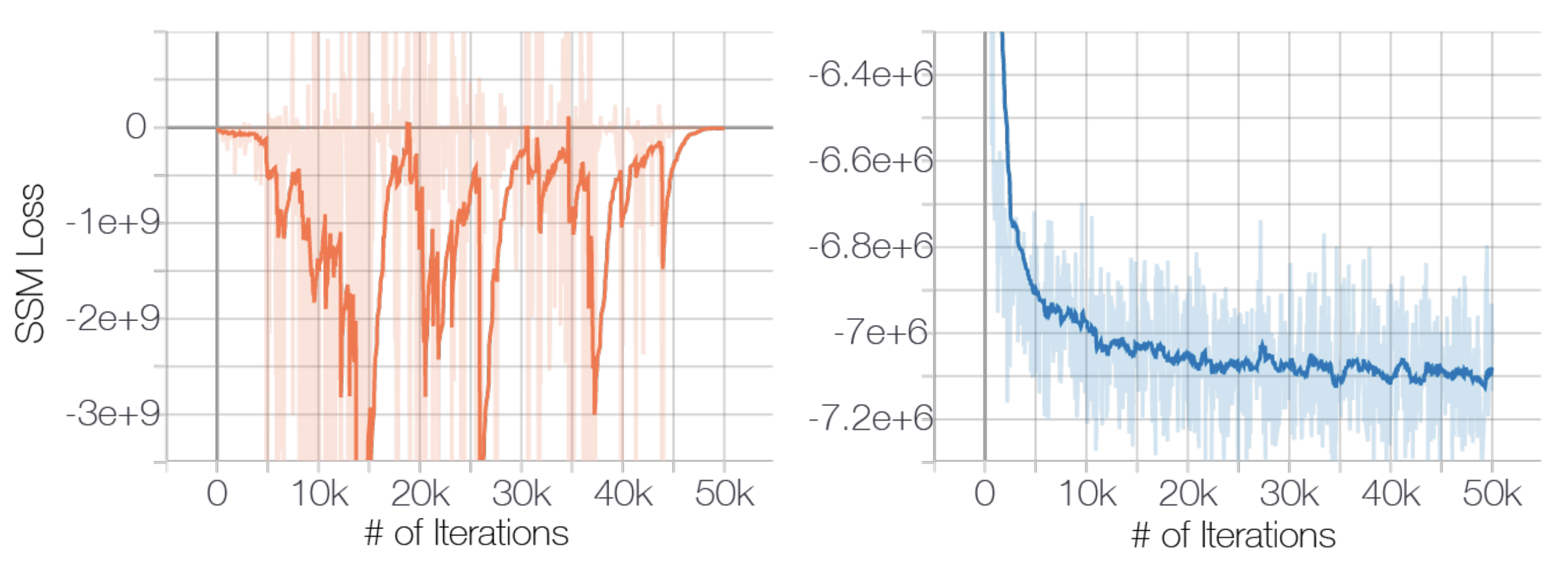

Sliced score matching loss trajectories on a toy problem: the unconstrained estimator diverges to large negative values while the noise-conditioned variant stays bounded over training iterations. — Training-stability comparison from the score-matching literature (Song et al. [2] and surrounding work). The score-matching loss is unbounded below without noise conditioning; injecting noise restores stable training.

SDE view

Song et al. unified the discrete and score-based views inside stochastic differential equations. The forward process is an Itô SDE $dx_t=f\left( x_t,t\right)\, dt+g\left( t\right)\, dw_t$ that continuously corrupts data into noise. Anderson's reverse-time formula gives a backward SDE driven by the score $dx_t=\left[ f\left( x_t,t\right)-g^{2}\left( t\right)\nabla _{x}\log p_{t}\left( x_{t}\right) \right] dt+g\left( t\right)\, d\bar {w}_{t},$ and a deterministic probability-flow ODE with the same marginals $dx_{t}=\left[f\left( x_{t},t\right)-\frac{1}{2}g^{2}\left( t\right)\nabla _{x}\log p_{t}\left( x_{t}\right)\right] dt.$ The ODE is useful for likelihood evaluation and fast sampling; the SDE is what most early samplers used. DDPMs, score-based models, and probability-flow ODE samplers are different discretizations of the same underlying dynamics.

The SDE view also separates modeling from numerics. The noise schedule, solver, parameterization, and preconditioner can all be changed without touching the underlying problem of learning the score.

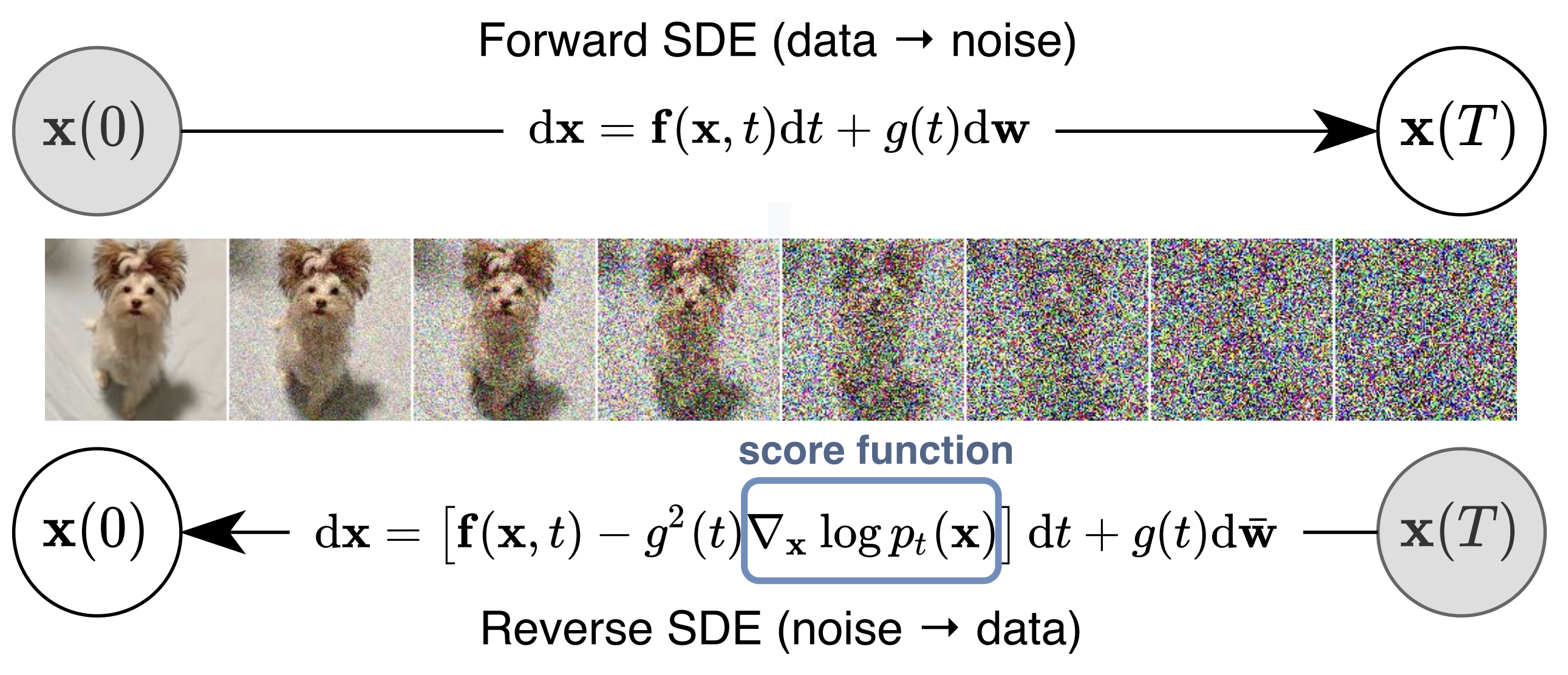

Figure 1 of Song et al. 2020. Forward SDE turning data into noise (top) and the score-driven reverse SDE turning noise back into data (bottom), with intermediate sample crops at increasing noise levels. — Figure 1 of Song et al. [4]. The learned score is the object shared by the stochastic reverse process and (in the same paper) the deterministic probability-flow ODE.

There is a lot of great writing on flow matching out there all of a sudden! This post clarifies the connection with diffusion models -- they are essentially two different ways to describe the same class of models. x.com/RuiqiGao/status/1863653647961428465

Sander Dieleman @sedielem, December 2, 2024

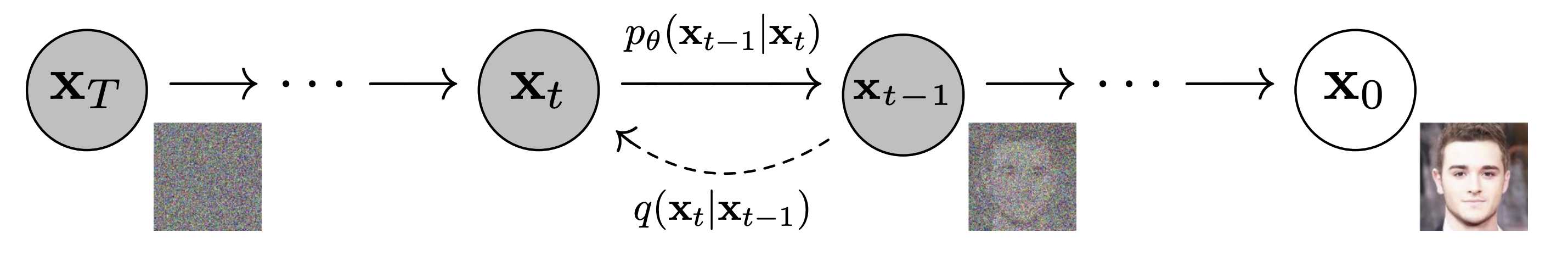

Figure 2 of Ho, Jain, Abbeel 2020 (DDPM). Directed graphical model of the forward and reverse chains between x_T and x_0. — Figure 2 of Ho et al. [3]. The forward chain corrupts data into noise; the learned reverse chain inverts it step by step.

Lu et al. [6] built DPM-Solver out of the semi-linear structure of the probability-flow ODE and cut sampling from thousands of steps to tens, with no retraining required.

Karras et al.

Karras et al. [5] argued that diffusion practice had become unnecessarily entangled: sampling schedule, loss weighting, noise parameterization, network preconditioning, and solver choice were all bundled together. Pulling each design decision apart showed that most of the published performance gains came from untangling the design space, not from a new generative principle. Their EDM recipe (continuous noise levels indexed by $\sigma$ , $\sigma$ -conditioned network preconditioning, and a second-order Heun ODE solver) has since become a common baseline.

Sampling
	VP	VE	iDDPM + DDIM	Ours (“EDM”)
ODE solver	Euler	Euler	Euler	2nd order Heun
Time steps $t_{i<N}$	$1 + \frac{i}{N-1}(\epsilon_\text{s} - 1)$	$\sigma_\text{max}^2 \left( \sigma_\text{min}^2 / \sigma_\text{max}^2 \right)^{\frac{i}{N-1}}$	$u_{\lfloor j_0 + \frac{M - 1 - j_0}{N - 1} i + \frac{1}{2} \rfloor}$ , where $u_M = 0$ and $u_{j-1} = \sqrt{\frac{u_j^2 + 1}{\max(\bar{\alpha}_{j-1} / \bar{\alpha}_j, C_1)} - 1}$	$\left( \sigma_\text{max}^{1/\rho} + \frac{i}{N-1} \left( \sigma_\text{min}^{1/\rho} - \sigma_\text{max}^{1/\rho} \right) \right)^{\rho}$
Schedule $\sigma(t)$	$\sqrt{e^{\frac{1}{2}\beta_\text{d} t^2 + \beta_\text{min} t} - 1}$	$\sqrt{t}$	$t$	$t$
Scaling $s(t)$	$1 \big/ \sqrt{e^{\frac{1}{2}\beta_\text{d} t^2 + \beta_\text{min} t}}$	$1$	$1$	$1$
Network and preconditioning
Architecture of $F_\theta$	DDPM++	NCSN++	DDPM	(any)
Skip scaling $c_\text{skip}(\sigma)$	$1$	$1$	$1$	$\sigma_\text{data}^2 \big/ \left( \sigma^2 + \sigma_\text{data}^2 \right)$
Output scaling $c_\text{out}(\sigma)$	$-\sigma$	$\sigma$	$-\sigma$	$\sigma \cdot \sigma_\text{data} \big/ \sqrt{\sigma_\text{data}^2 + \sigma^2}$
Input scaling $c_\text{in}(\sigma)$	$1 / \sqrt{\sigma^2 + 1}$	$1$	$1 / \sqrt{\sigma^2 + 1}$	$1 / \sqrt{\sigma^2 + \sigma_\text{data}^2}$
Noise cond. $c_\text{noise}(\sigma)$	$(M - 1)\, \sigma^{-1}(\sigma)$	$\ln\!\left(\tfrac{1}{2}\sigma\right)$	$M - 1 - \arg\min_j \|u_j - \sigma\|$	$\tfrac{1}{4} \ln(\sigma)$
Training
Noise distribution	$\sigma^{-1}(\sigma) \sim \mathcal{U}(\epsilon_\text{t}, 1)$	$\ln(\sigma) \sim \mathcal{U}(\ln(\sigma_\text{min}), \ln(\sigma_\text{max}))$	$\sigma = u_j, \; j \sim \mathcal{U}\{0, M - 1\}$	$\ln(\sigma) \sim \mathcal{N}(P_\text{mean}, P_\text{std}^2)$
Loss weighting $\lambda(\sigma)$	$1 / \sigma^2$	$1 / \sigma^2$	$1 / \sigma^2$ (note *)	$\left( \sigma^2 + \sigma_\text{data}^2 \right) \big/ (\sigma \cdot \sigma_\text{data})^2$
Parameters
Parameters	$\beta_\text{d} = 19.9$ $\beta_\text{min} = 0.1$ $\epsilon_\text{s} = 10^{-3}$ $\epsilon_\text{t} = 10^{-5}$ $M = 1000$	$\sigma_\text{min} = 0.02$ $\sigma_\text{max} = 100$	$\bar{\alpha}_j = \sin^2\!\left( \frac{\pi}{2} \frac{j}{M (C_2 + 1)} \right)$ $C_1 = 0.001$ $C_2 = 0.008$ $M = 1000$ $j_0 = 8$ (note †)	$\sigma_\text{min} = 0.002$ $\sigma_\text{max} = 80$ $\sigma_\text{data} = 0.5$ $\rho = 7$ $P_\text{mean} = -1.2$ $P_\text{std} = 1.2$

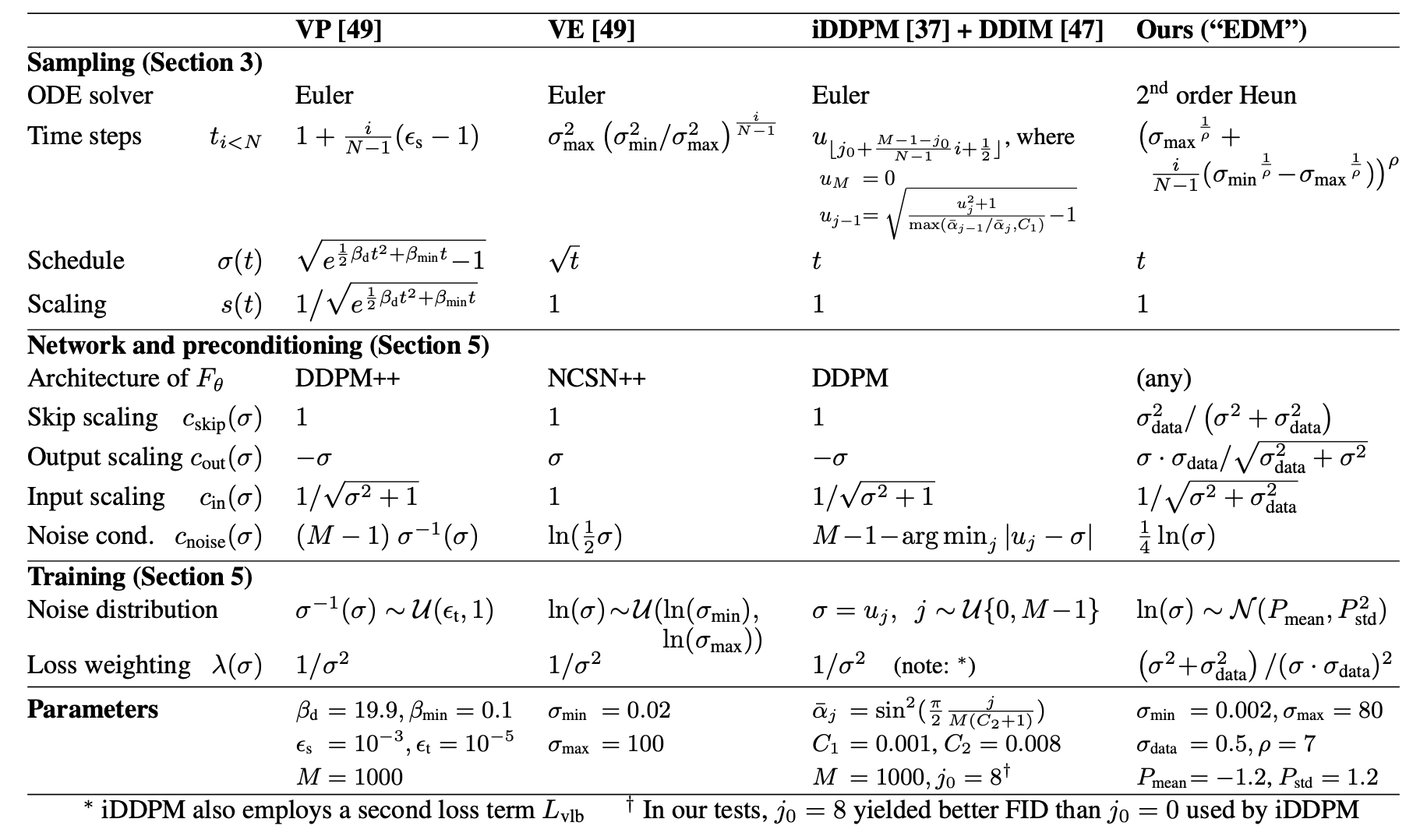

Table 1 of Karras et al. [5], transcribed from the paper's own source. The score-estimation problem stays fixed while schedules, targets, preconditioning, and solvers move around it.

N

is the number of solver steps at sampling time and

M

and

\{u_j\}

are the count and the steps the model was originally trained for. * iDDPM also employs a second loss term

L_\text{vlb}

. † In our tests,

j_0 = 8

yielded better FID than the

j_0 = 0

used by iDDPM.

The implementation history runs through three papers. Dhariwal and Nichol showed that diffusion models beat GANs on ImageNet, by combining classifier guidance with architecture and training changes. Ho and Salimans then dropped the auxiliary classifier in favor of classifier-free guidance, training the conditional and unconditional scores jointly and combining them at sampling time. Rombach et al. moved the diffusion process inside the latent space of a pre-trained autoencoder, which is what made high-resolution diffusion feasible at academic compute and what Stable Diffusion is built on.

Natural data concentrates near low-dimensional manifolds where direct density modeling is hard. Adding white noise thickens the manifold: at high noise levels the distribution is smooth, at low noise levels it is detailed but local. Diffusion replaces a single full-density estimation problem with a sequence of denoising problems indexed by noise level. Compare with autoregressive models, which generate sequentially conditioned on prior tokens, and with flows, which accept restrictions on the transforms they can express in exchange for tractable likelihoods. Diffusion's training objective is stable in a way GAN training is not, while paying for it with iterative sampling that DPM-Solver, consistency models, and distillation have largely clawed back.

Semantic abstraction inside the model is still theoretically incomplete. The score tells you how to move from a noisy sample toward a clean one. It does not say why text prompts, latent-space guidance, or multimodal conditioning organize concepts the way they do. Those mechanisms are built on top of a fixed score-matching core, but the core does not force any of them.

Whether diffusion is the right parameterization is also unclear to me. Flow matching frames generation as learning a vector field that transports a simple prior to the data distribution along possibly non-straight paths, with a regression objective that does not require an SDE. Rectified flow constrains the paths to be nearly straight, which keeps few-step sampling accurate. Consistency models compress the iterative denoising sampler into a single-step generator while preserving sample quality. None of these compete with score-based modeling; they are alternative parameterizations of the same vector-field-across-noise-levels problem.

References

[1] J. Sohl-Dickstein, E. A. Weiss, N. Maheswaranathan, and S. Ganguli. Deep unsupervised learning using nonequilibrium thermodynamics. arxiv 1503.03585, 2015.
[2] Y. Song and S. Ermon. Generative modeling by estimating gradients of the data distribution. arxiv 1907.05600, 2019.
[3] J. Ho, A. Jain, and P. Abbeel. Denoising diffusion probabilistic models. arxiv 2006.11239, 2020.
[4] Y. Song, J. Sohl-Dickstein, D. P. Kingma, A. Kumar, S. Ermon, and B. Poole. Score-based generative modeling through stochastic differential equations. arxiv 2011.13456, 2020.
[5] T. Karras, M. Aittala, T. Aila, and S. Laine. Elucidating the design space of diffusion-based generative models. arxiv 2206.00364, 2022.
[6] C. Lu, Y. Zhou, F. Bao, J. Chen, C. Li, and J. Zhu. DPM-Solver: a fast ODE solver for diffusion probabilistic model sampling in around 10 steps. arxiv 2206.00927, 2022.
